- Introduction: Auto-Transformer Starters are a specific type of motor starter that is primarily used for starting induction motors. They employ an autotransformer to reduce the voltage applied to the motor during the startup process.

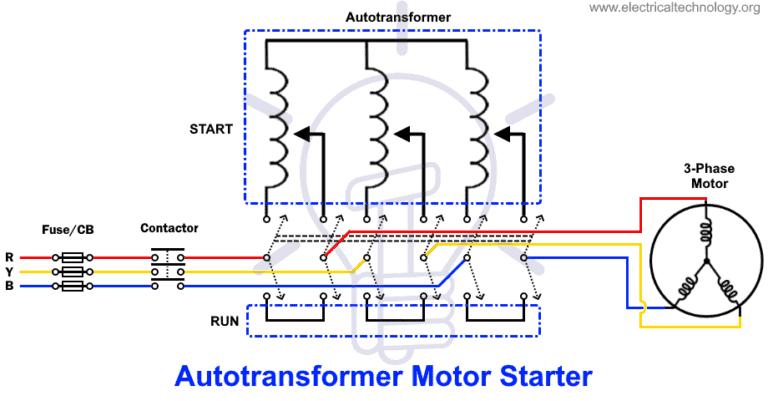

- Components: An auto-transformer starter consists of several essential components, including:
- Autotransformer: The autotransformer is the key component of the starter. It features multiple taps or windings that allow for the selection of different voltage levels.
- Contactor: The contactor is responsible for controlling the connection between the motor and the different taps on the autotransformer.
- Control Circuit: The control circuit monitors the motor’s speed or a predetermined time delay and initiates the switching between different taps on the autotransformer.
- Startup Process: During motor startup, the motor is initially connected to a tap on the autotransformer that provides a reduced voltage. This reduced voltage results in a lower starting current and torque, effectively reducing stress on the motor and minimizing voltage dips in the power supply.
- Transition to Full Voltage: Once the motor reaches a certain speed or a predetermined time delay elapses, the autotransformer switches to a higher tap, providing full voltage to the motor for normal operation. The contactor ensures proper switching between the different taps on the autotransformer during both the startup and normal operation phases.
- Advantages: Auto-transformer starters offer several advantages over direct-on-line (DOL) starters, including:
- Smoother Startup: The gradual voltage increase provided by the autotransformer ensures a smoother motor startup, reducing mechanical stress on the motor and any connected equipment.
- Reduced Inrush Current: By starting the motor with reduced voltage, auto-transformer starters help decrease the inrush current, which minimizes the impact on the power supply and reduces stress on associated equipment.
- Lower Voltage Dips: Auto-transformer starters contribute to lower voltage dips during motor startup, ensuring stable power quality and preventing disturbances in the electrical system.
- Suitable Applications: Auto-transformer starters are particularly suitable for applications where a large starting current may cause power quality issues or when reduced voltage startup is desired to mitigate stress on the motor. They find common usage in industries such as manufacturing, mining, and HVAC systems.
- Limitations: Auto-transformer starters are not designed for continuous speed control or variable speed applications. They are primarily focused on providing efficient motor startup and reducing the starting current.
- In summary, auto-transformer starters utilize an autotransformer to gradually increase voltage during motor startup, resulting in smoother operation, reduced inrush current, and lower voltage dips. They are ideal for applications where mitigating power quality issues or reducing stress on the motor is critical and are commonly employed in various industries.
